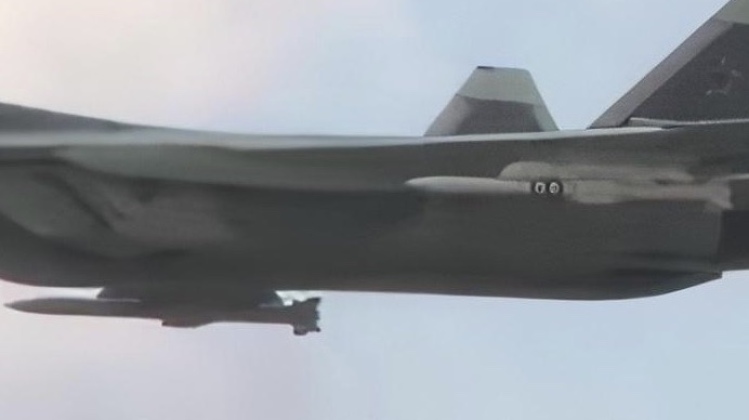

New footage launched on July 3 has proven a Russian Aerospace Forces Su-57 fifth era fighter carrying 4 externally mounted R-77 energetic radar guided air-to-air missiles, with the brand new configuration showing to be optimised for medium vary air defence operations. With the Su-57 estimated to have the ability to carry as much as six R-77M missiles internally in its major weapons bay, the carriage of 4 exterior missiles will increase its complete payload to 10 past visible vary missiles. Whereas inside missile carriage permits fifth era fighters to keep up their radar-evading stealth profiles, reliance solely on inside carriage limits fighters’ complete missile payloads. The choice to prioritise missile quantity over the survivability of the plane signifies that the Su-57 seen within the current picture was working behind pleasant traces for an air defence mission, for which a configuration with ten R-77 missile may very well be extremely beneficial.
One doubtless rationalization for the plane’s configuration is that it was working in a homeland air defence function. When working over Russian-controlled territory, the plane is predicted to face little threat from missile hearth, with the Ukrainian Air Drive fielding no lengthy vary air-to-air missiles. Su-57s on this configuration are anticipated to be relied on for intercepting cruise missiles, unmanned plane, or hostile plane approaching Russian airspace The Su-57 is especially nicely optimised for such roles, with its sensor suite being significantly extra superior than these of different Russian fighter sorts, and integrating 5 AESA radars distributed throughout its airframe, whereas its endurance is outstandingly excessive permitting it to patrol and loiter for appreciable intervals.

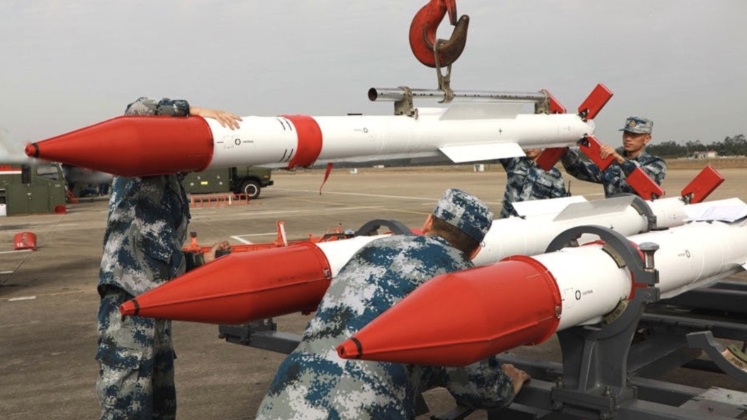

Whereas R-77M missiles have cropped fins to suit contained in the Su-57’s inside weapons bay, the older, shorter ranged, and fewer superior R-77-1 can solely be carried externally. These could have been mounted on the fighter seen within the newest footage, with the readability in of the picture making it tough to discern which R-77 variant was carried. It stays unsure whether or not the Russian defence sector will part the R-77-1 out of manufacturing, as whereas it’s a lot much less succesful than the brand new R-77M, it’s regarded as appreciable less expensive to supply. Though its designation signifies that the R-77M is an incremental enchancment over the R-77-1, the extent of the design adjustments made makes it successfully a brand new missile. The missile’s vary is prolonged from 110 to 200 kilometres, primarily attributable to its integration of a dual-pulse stable rocket motor and aerodynamic enhancements, whereas its AESA radar and close to distinctive energetic phased array antenna make it far more difficult to jam or evade.
Su-57 fighters have been first reported to have been deployed for air-to-air operations in 2022, with a later report in January 2023 by the British Defence Ministry noting that the fighters have been “launching lengthy vary air-to-surface or air-to-air missiles into Ukraine,” and had been “since at the least June 2022.” The language utilized by the British Defence Ministry, launching missiles “into Ukraine” from lengthy standoff ranges, indicated that higher medium vary or lengthy vary missiles have been getting used. The British conservative outlet The Dialog reported in mid-February that 12 months that “The Russian MiG-31 and Su-57 working the R-37M lengthy vary hypersonic missile have engaged Ukrainian plane at a spread of over 200kms from the protection of Russian airspace.” The complexity of the plane’s operations within the theatre have elevated considerably over the previous three years, because the variety of Su-57s in service has greater than doubled, and because the Air Drive has developed new technique of working the plane.
