The Russian S-400 lengthy vary air defence system is at the moment relied on to kind the spine of the nation’s air defence community, with greater than twice the portions of funds having been spent on procuring the programs during the last twenty years than on all forms of fighter plane mixed. Whereas the system has been broadly praised by analysts and operators for its very excessive mobility, its excessive engagement vary, and its skill to shoot down very quick targets utilizing missiles with speeds of over Mach 14, its excessive situational consciousness has additionally gained appreciable consideration. The system was developed from the late Nineties particularly to answer rising challenges from plane and missiles with superior stealth capabilities and diminished radar cross sections, with the usage of a number of forms of complementary radars offering a very clear image of the battlefield.
The 91N6 ‘Massive Hen’ panoramic surveillance radar is the first radar built-in into the S-400 system, and is relied on for long-range surveillance & goal acquisition radar to offer wide-area airspace scanning and goal monitoring. It has a detection vary of as much as 600 kilometres for giant plane with excessive radar cross sections, akin to E-7 airborne warning and management programs. The radar can monitor lots of of targets concurrently, and feeds information to the command put up. It operates in a number of bands, and has digital safety/jamming resistance.

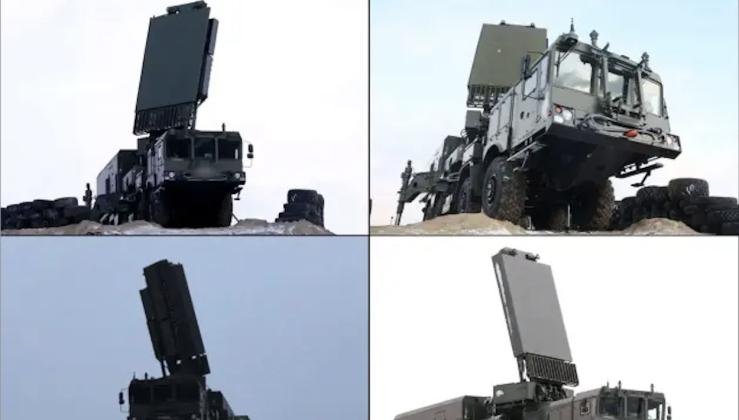

The 92N6 ‘Grave Stone’ X-band fire-control and engagement radar is relied on to trace targets and information interceptor missiles in direction of them. The radar can each present actual time information to command centres and information missiles to their targets. It’s prized for its very lengthy monitoring vary of as much as 600 kilometres in opposition to ballistic missiles and huge plane. Its multi-channel engagements capabilities enable it to information a number of missiles in opposition to a number of targets directly, whereas offering mid-course updates and terminal engagement help. Complementing the 91N6 and 92N6, the 96L6 serves as an extra 3D acquisition radar protecting a large altitude vary, and is relied on to detect low-flying plane, cruise missiles, and fill gaps in protection from the 2 fundamental radars. It could monitor dozens of targets concurrently, and prioritises threats for engagement radars. The radar has a detection vary of roughly 300 kilometres in opposition to excessive radar cross part targets, and performs a key function in feeding targets into the hearth management system.

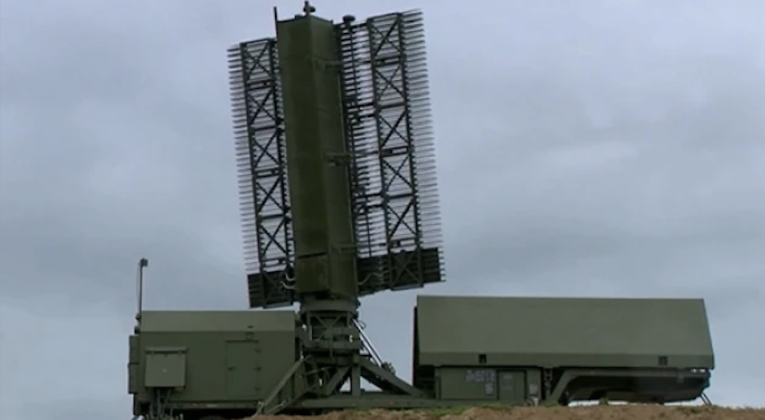

The S-400 system can even combine the Protivnik-GE L-band early warning radar, which has a protracted vary and decrease frequency, and is perfect for detecting stealth plane and radar evading cruise missiles. The system was designed for early warning and airspace management, and is deployed at higher-echelon air defence items. S-400s have additionally extra just lately more and more built-in the Nebo-M multi-band 3D radar programs, which mixed a number of forms of array into one networked system. These embrace a VHF array optimised for stealth detection, an L-band array optimised for monitoring, and an X-band array optimised for precision focusing on. The combination of the Nebo-M is taken into account to have supplied a very important enchancment to the S-400’s skill to have interaction stealth plane, with its skill to function throughout a number of frequencies considerably lowering the effectiveness of low-observable applied sciences.

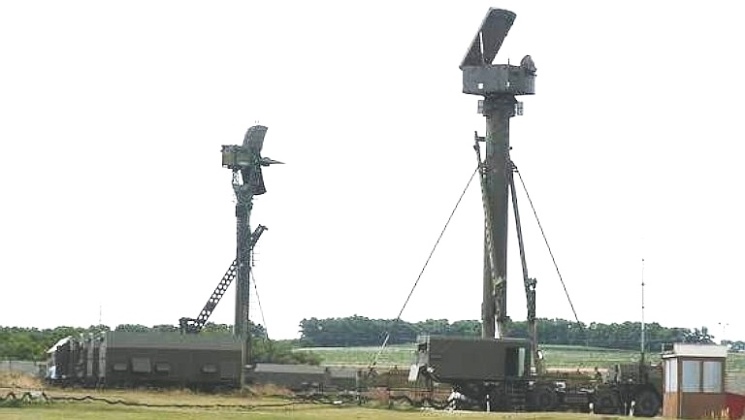

S-400 programs can combine the 40V6M and 40B6M cell telescopic mast programs, which have been designed to boost radar antennas above floor stage, and are mounted on transport autos for subject deployment. These programs can important improve the efficiency of radars just like the 96L6, as they partly circumvent the most important limitation of ground-based radars, specifically the radar horizon, by rising line-of-sight to considerably lengthen detection ranges. That is significantly essential in opposition to terrain-hugging targets akin to cruise missiles, particularly because the Russian Aerospace Forces don’t deploy massive numbers of fighters or AEW&C programs to function elevated sensor platforms. The S-400’s radars feed information again to the 55K6 command put up/system, which fuses all sensor inputs, prioritises threats, and assigns engagements to the suitable launcher items.
Though the S-400 entered service in 2007, it has continued to be incrementally modernised, with two of probably the most important examples being the combination of the Nebo-M radar, and the 40N6 lengthy vary surface-to-air missile, the latter which is estimated to have occurred round 2018. The missile can have interaction targets as much as 400 kilometres away, putting targets over the earth’s curvature, though this can’t be achieved by the S-400’s personal sensors, and as an alternative depends on focusing on information both from ahead deployed floor based mostly radars, or from airborne radars, akin to these carried by A-50U AEW&C programs. The missile has been efficiently fight examined in opposition to each Ukrainian and Pakistani targets. Regardless of a major enhance in fighter manufacturing since 2022, the S-400 is predicted to proceed to be relied on because the spine of Russia’s air defences for many years into the longer term, with new radars, and new variants of present radar varieties, anticipated to proceed to be developed.
