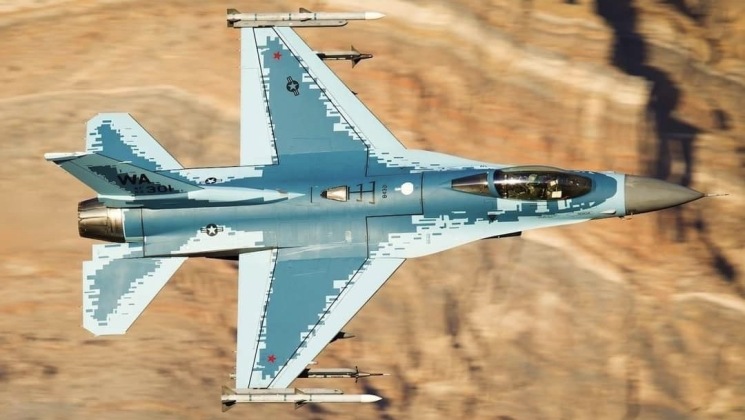

In the course of the first sighting of an F-16 Block 70 fighter constructed for the Republic of China Air Pressure within the air close to Fort Price Naval Base in Texas, the plane was seen integrating 5 exterior gasoline tanks, together with three drop tanks beneath its fuselage and wings, two additional conformal gasoline tanks. The configuration has highlighted the gradual evolution of the F-16 program to more and more depend on outstandingly excessive exterior gasoline carriage to a a lot higher extent than was the case within the late Seventies with the fighter sort first entered service. The F-16’s comparatively small dimension and light-weight design restrict its inside gasoline capability, and considerably limit its fight radius. This makes exterior gasoline carriage nearly indispensable for many operational missions, notably within the Pacific the place operations over longer distances are thought of important.
Whereas F-16s have incessantly been seen flying with a number of underwing drop tanks, the superior Block 60 and Block 70/72 variants have incessantly built-in conformal gasoline tanks mounted alongside the higher fuselage. The idea of becoming conformal gasoline tanks to the F-16 emerged within the early Nineties, pushed largely by export prospects searching for higher vary with out sacrificing payload. The primary main proposal was the F-16ES (Enhanced Strategic), developed for an Israeli strike fighter competitors. Flight testing of prototype conformal tank shapes started in 1994, demonstrating that the tanks could possibly be built-in with solely minimal results on dealing with traits whereas considerably extending mission radius. Though the F-16ES was in the end not chosen, its conformal gasoline tank design turned the muse for later manufacturing variants. Following profitable aerodynamic trials throughout the Nineties, Lockheed Martin refined the design and accomplished formal U.S. Air Pressure improvement flight testing in 2002. The assessments confirmed that the tanks may considerably improve unrefuelled vary and endurance whereas sustaining the F-16’s wonderful dealing with qualities, notably in subsonic flight.

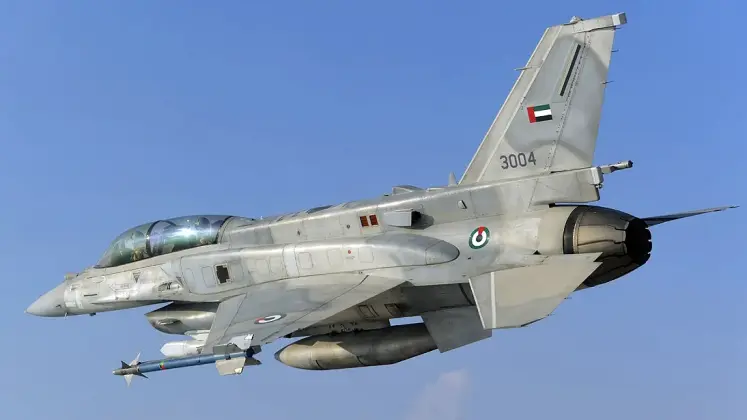

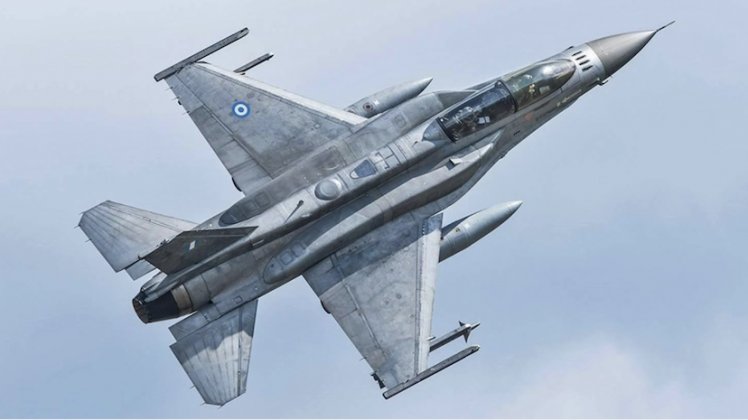

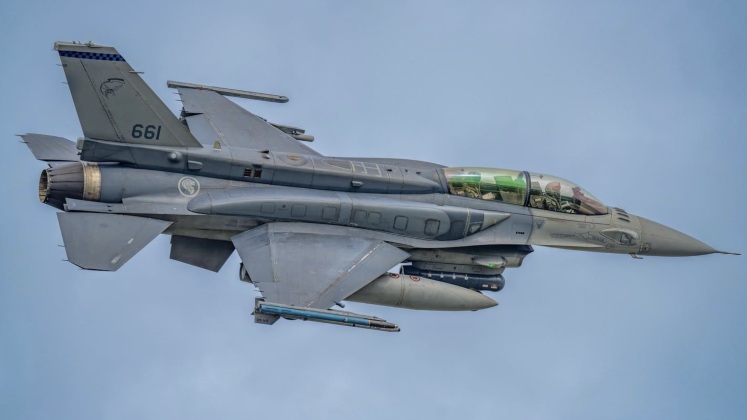

In keeping with Lockheed Martin, integrating giant fuselage-mounted tanks with out considerably degrading the plane’s aerodynamics represented a significant engineering achievement. The primary manufacturing plane to include conformal gasoline tanks was the F-16E/F Block 60, developed for the United Arab Emirates and delivered starting in 2004. On this variant, the tanks turned a defining exterior characteristic, mounted alongside the higher fuselage behind the cockpit and mixing easily into the plane’s form. The Block 60 mixed conformal gasoline tanks with superior avionics, an AESA radar, and an inside focusing on system to create probably the most subtle F-16 variants ever constructed. Subsequently, conformal gasoline tanks turned accessible on Block 50/52 fighters exported to Israel, Greece, Poland, Turkey, Singapore, Morocco and Egypt. The 2 conformal tanks collectively carry roughly 1700 litres every, which may improve operational vary and endurance by 20–40 % relying on mission profile and weapons load. For the unique F-16ES idea, Lockheed projected an unrefuelled strike radius of over 1,650km with a typical heavy strike load, approaching that of the a lot bigger F-15E Strike Eagle.
The usage of these extra gasoline tanks supplies a a lot wanted extension to the plane’s endurance and fight radius, however comes at a considerable price to flight efficiency. Underwing drop tanks improve aerodynamic drag, add weight, and occupy hardpoints that might in any other case carry weapons or digital warfare gear. The extra drag reduces acceleration, climb fee, sustained flip efficiency, and high velocity whereas growing gasoline consumption throughout manoeuvring. The plane’s famed agility – one of many defining traits of the F-16 design – is subsequently noticeably degraded when flying in a closely fuel-laden configuration. It’s notable that Chinese language and Russian fighter sorts aside from the Chinese language light-weight J-10C fighter are hardly ever seen with exterior gasoline tanks, reflecting the truth that they often have far longer ranges than their Western counterparts, and notably than the F-16. The Chinese language J-20A air superiority fighter, for instance, has greater than double the fight radius of the F-35, and near triple that of an F-16 if working on inside gasoline alone.
The principal benefit of conformal gasoline tanks is that they free the underwing hardpoints, in distinction to exterior drop tanks which do. An F-16 outfitted with conformal tanks can subsequently carry extra air-to-air missiles, precision-guided bombs, digital warfare pods, or reconnaissance gear whereas nonetheless having fun with drastically prolonged vary. As a result of the tanks are carefully built-in with the fuselage, they generate far much less aerodynamic drag than typical exterior gasoline tanks, notably throughout subsonic cruise. Additionally they scale back dependence on aerial refuelling and permit plane to stay on fight air patrol or loiter over goal areas for considerably longer durations. These benefits are particularly invaluable for nations that will have restricted tanker fleets or must conduct long-range strike missions.
Though conformal tanks are far more aerodynamically environment friendly than underwing drop tanks, they don’t seem to be with out penalties. The extra gasoline and tank construction add substantial weight, growing the plane’s inertia and decreasing acceleration and instantaneous manoeuvrability in contrast with a clear F-16. At supersonic speeds, drag additionally will increase, though typically lower than can be skilled with equal exterior tanks. Moreover, not like typical drop tanks, they can’t be jettisoned throughout fight, which means the plane retains their weight all through the mission, and are thus weighed down throughout fight.
